That’s not a flood beam… THIS is a flood beam.
Hardkorr’s new XDW Series work lights are characterised by clean, bezel-free lines and a sleek, blacked-out appearance. Their most distinctive feature, however, is the reflectors. Utilising the latest engineering methods and manufacturing techniques, these reflectors are precisely calibrated and manufactured to nanometre precision to create incredible beam patterns that simply weren’t possible in the past. We call this our Hyperflood™ technology.
Showcasing this new reflector technology combined with latest-generation 5W OSRAM LED chips, these XDW Series slimline work lights shine an incredible 180 degree beam up to 76m from the light source. They are often mounted under roof racks, on front bars or canopies to provide auxiliary lighting for driving, reversing, off-road visibility or working around the vehicle.
Having downward-facing LED chips means there is less direct glare from the lights. This is handy for when the lights are mounted in places where they may otherwise interfere with the vision of other drivers.
New Hyperflood™ light beam.
The width of the flood beam on these lights has to be seen to be believed.
Genuine parts, precision optics.
Hardkorr’s XDW76F work lights are made using genuine top-grade OSRAM® LED chips sourced from authorised agents, to ensure even light throw, correct colour rendering and long service life. These chips are matched with custom engineered reflectors that are manufactured to nanometre precision, and secured within high-quality aluminium housing which is designed to effectively dissipate heat and protect the sensitive components within.
This attention to detail ensures that every unit we manufacture gives consistent performance, and helps us fulfil our ambition to be the world’s most trusted manufacturer of LED lighting.
Product Video
The Hardkorr guarantee
All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 3-year Australian warranty and a 30-day money back guarantee.
Specifications
| Materials | ADC12 cast aluminium housing Lexan® polycarbonate lens |
|---|---|
| LED type | 6 x 5W OSRAM |
| Output | 3,459 raw lumens 1,943 effective lumens |
| Distance | 1 lux @ 76m |
| Beam type | Hyperflood™ |
| Dimensions | 157mm (w) x 43.7mm (h) x 60mm (d) |
| Ingress protection | IP67 |
| Working voltage | 9-33V DC |
| Current draw | 2.64A @ 12V / 1.33A @ 24V |
| Colour temperature | 5700K |
| Weight | 0.5kg |
| LED Lifespan | 50,000+ hours |
| Certifications | CE, RoHS, C-Tick |
Pack Contents
| 1x | 30W slimline work light with Deutsch lead |
|---|---|
| 1x | Deutsch to DC adaptor |
| 1x | Powdercoated stainless steel mounting bracket |

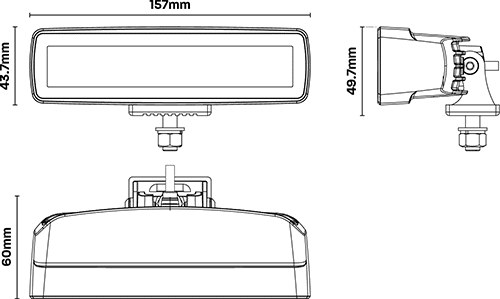

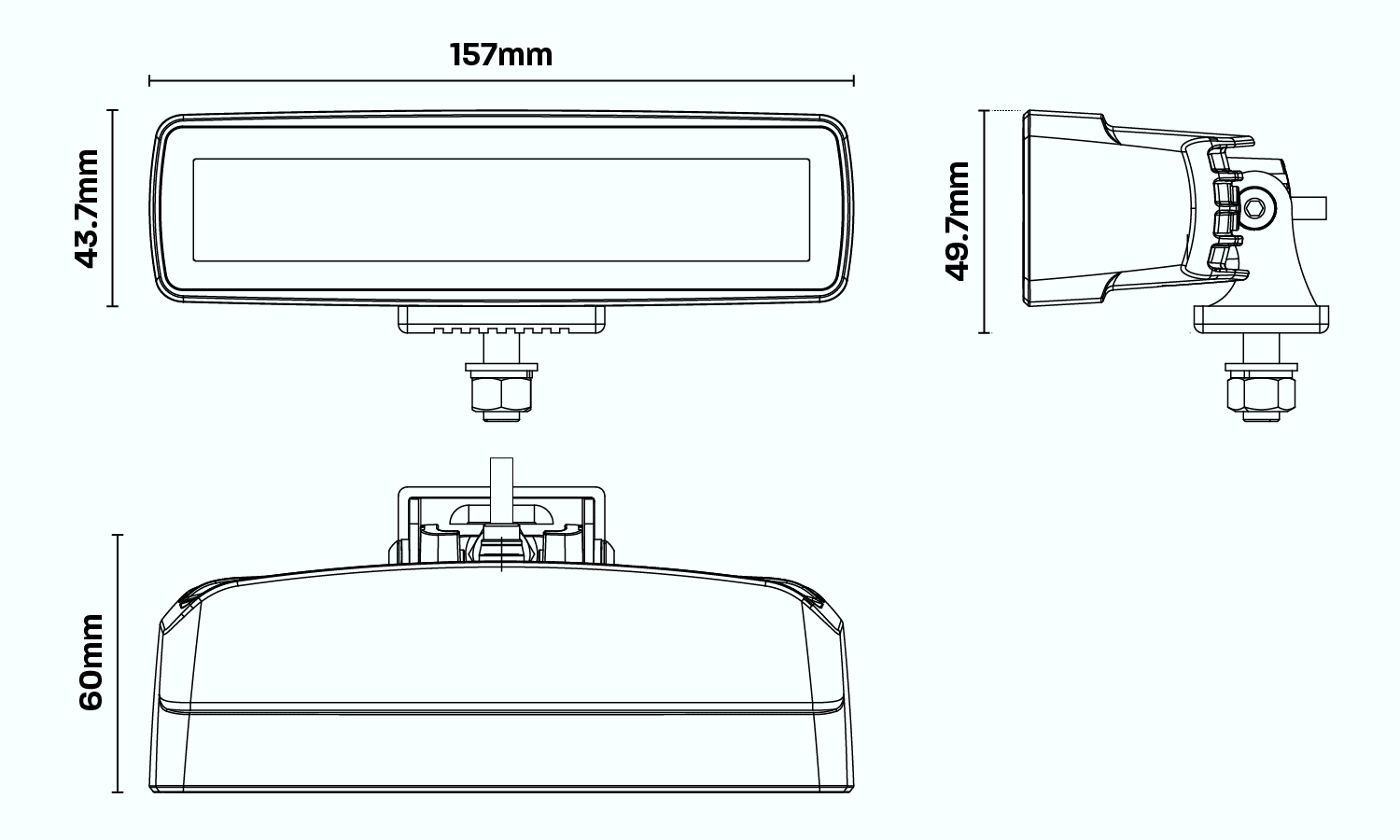

Dimensions
Paul (verified owner) –
Have fitted 3 on rack and lights up rear and sides of vehicle without needing 6 lights of other types to achieve the same result. They look stealth as their low profile means they sit below the rack. Added bonus is the 2 and 4 way splitter cables make wiring up extra easy.
Roy schleusener (verified owner) –
I purchased two hyper work lights and mounted them above the tail lights and under the tray on my Dmax. The lights are brilliant for reversing my boat trailer at night.The lights are XDW series slimline 30w.
