Specifications
Materials | 6063 aluminium housing UV hardcoated polycarbonate lens Vacuum-metallised aluminium reflectors |
---|---|
LED type | OSRAM OSLON® SSL 150 |
Power | 270W |
Beam distance | 1 lux @ 883m (high) / 1 lux @ 373m (low) |
Output (raw) | 22,680 lumens |
Output (effective) | 13,393 lumens (high) / 2,379 lumens (low) |
Peak intensity | 780,000 candela |
Colour temperature | 5700K |
DRL colour | Settable orange / white |
Operating voltage | 10 – 30V DC |
Current draw (12V) | 19.50A (high) / 3.50A (low) |
Current draw (24V) | 9.73A (high) / 1.78A (low) |
DRL power draw | 1.5A @ 12V / 0.84A @ 24V |
Operating temperature | -30°C to 65°C |
Weight | 3.42kg |
Certifications | CE, CISPR25, ISO 7637-2:2004 |
Pack Contents

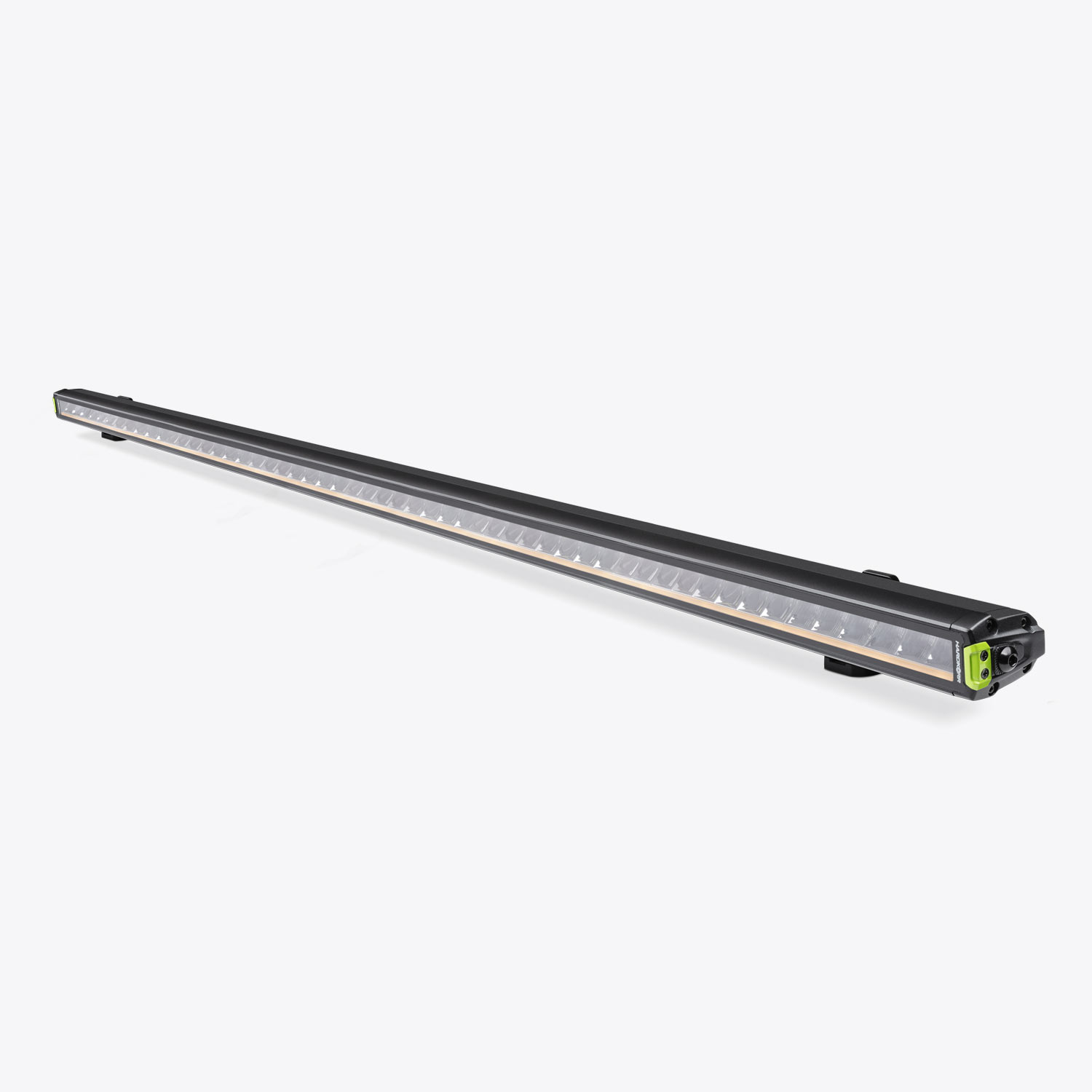

1x | 50" Hyperion LED light bar |
---|---|
1x | Set end-mount legs |
1x | Set under-mount legs |
1x | Wiring harness |
3x pair | Coloured inserts (blue, black, grey) |
