The toughest work lights we’ve ever made.
When failure is not an option, this is the only work light you need. It’s been designed from the ground up to take a hell of a beating, and it’s got all the certifications to prove it.
Worried about vibration? Not a problem for this light: it’s been tested to ensure it can survive 15G (R.M.S.) of vibration @ 24-2000Hz, meaning it will have no trouble with corrugations, bumps, holes, rocks or engine vibration.
What about impact? Again, not an issue. They’ve been certified to IK08 standard, which means they can handle a severe impact without missing a beat.
Add to this the outstanding optoelectronic engineering that sees it produce a 135 degree flood beam and a forward distance of 1 lux at 82m, plus full compliance with all international standards, and you’ve got yourself a light without equal.
We don’t use the “mine-spec” designation lightly when talking about these lights. We’ve engineered them to be incredibly durable, and extensively tested them to ensure they will perform under extreme duress in the real world. They are certified as compliant with the following standards:
- IK08: Can survive up to a 5 joule impact from any direction without failing
- IEC 60068-2-6 and ISO16750-1: Can survive constant exposure to 15G (R.M.S.) of vibration in the 24-2000Hz range
- IP68 & IP69K: Completely resistant to dust ingress, can handle submersion in 3m of water for 30 minutes and high-temperature water jets at 8-10MPa pressure for 2 minutes
- CISPR25 Class 3: Will not unduly interfere with radio signals
- IEC 60068-2-14: Resistant to thermal shock – test parameters were 85°C max / -40°C min, 30 min per cycle, 40 cycles total
In addition, our manufacturing facility has been certified in accordance with the following international standards:
- ISO 9001: Ensures quality management systems have been implemented
- ISO 14001: Ensures environmental management systems have been implemented
New Hyperflood™ light beam.

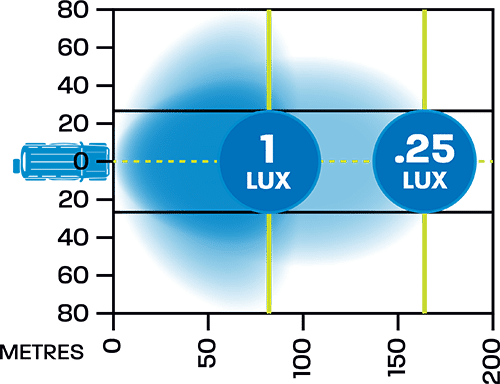

These lights produce a smooth, even beam with no bright or dark spots through a full 120 degree range from source, up to a maximum forward distance of 1 lux @ 82m.
Genuine parts, precision optics.

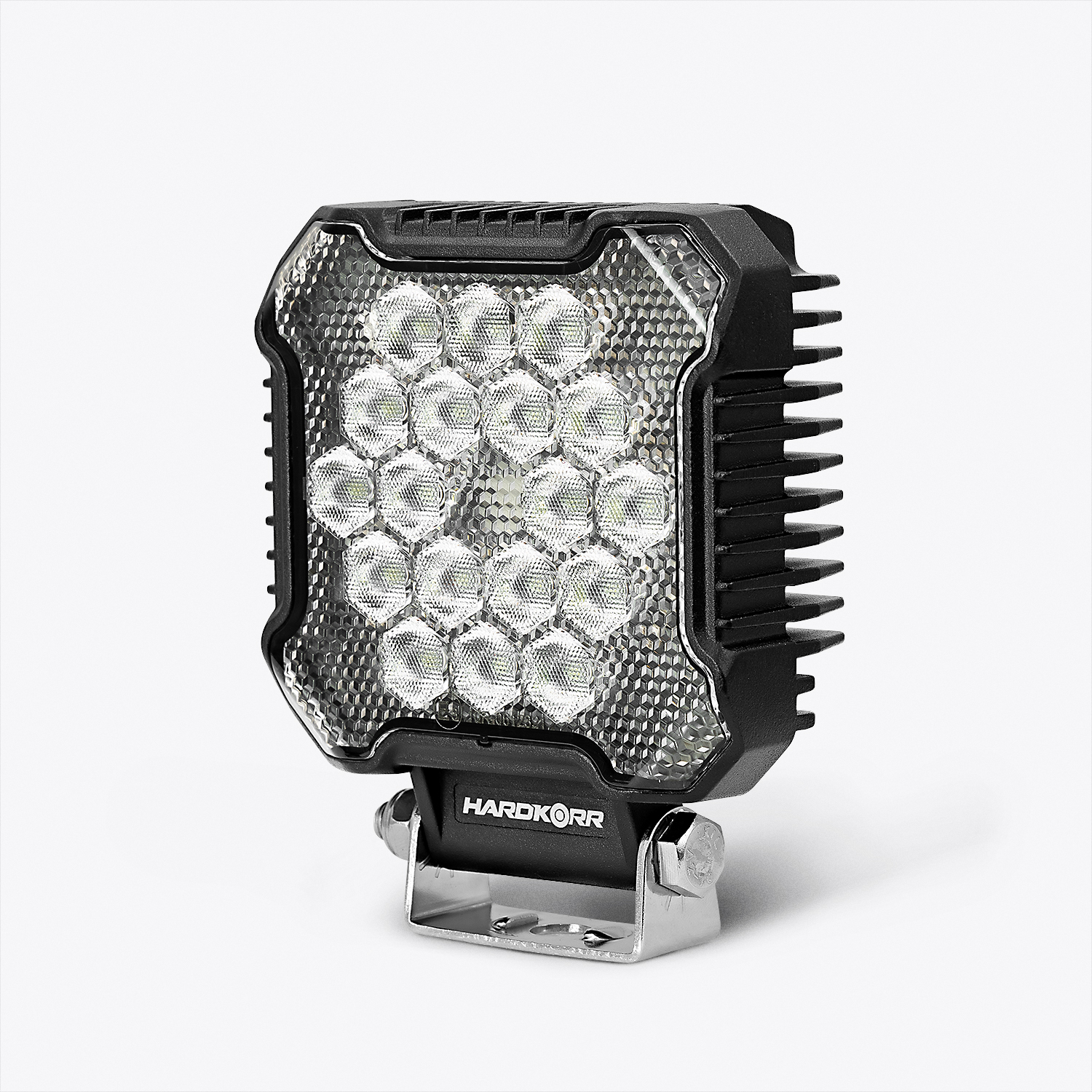

Hardkorr’s HKXDW26MS work lights are made using genuine top-grade OSRAM® LED chips sourced from authorised agents, to ensure even light throw, correct colour rendering and long service life. These chips are matched with custom engineered reflectors that are manufactured to nanometre precision, and secured within high-quality aluminium housing which is designed to effectively dissipate heat and protect the sensitive components within.
This attention to detail ensures that every unit we manufacture gives consistent performance, and helps us fulfil our ambition to be the world’s most trusted manufacturer of LED lighting.
The Hardkorr guarantee
All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 3-year Australian warranty and a 30-day money back guarantee.
Specifications
| Materials | ADC12 cast aluminium housing Pressure-formed polycarbonate lens |
|---|---|
| LED type | 18 x 1.44W OSRAM® |
| Output | 3,200 raw lumens |
| Distance | 1 lux @ 82m |
| Beam type | Hyperflood™ |
| Ingress protection | IP68 / IP69K |
| Impact rating | IK08 (5J) |
| Vibration rating | IEC 60068-2-6 & ISO16750-1 (15G R.M.S. @ 24-2000Hz) |
| EMC rating | CISPR 25 Class 3 |
| Thermal shock rating | IEC 60068-2-14 (-40°C/85°C, 30 min, 40 cycles) |
| Working voltage | 10-32V DC |
| Current draw | 1.7A @ 13.4V / 0.85A @ 24V |
| Colour temperature | 6000K |
| Dimensions | 102mm (w) x 126mm (h) x 40mm (d) |
| Weight | 0.6kg |
| LED Lifespan | 50,000+ hours |
| Certifications | CE, RoHS, EMC |
Pack Contents
| 1x | 26W mine-spec square LED work light with Deutsch lead |
|---|---|
| 1x | Deutsch to DC adaptor |
| 1x | 304 stainless steel bracket and fittings |
