Specifications
Materials | ADC12 aluminium housing with AkzoNobel® powder coating 4mm 316 s/steel bracket with AkzoNobel® powder coating UV-coated Lexan® polycarbonate lens |
---|---|

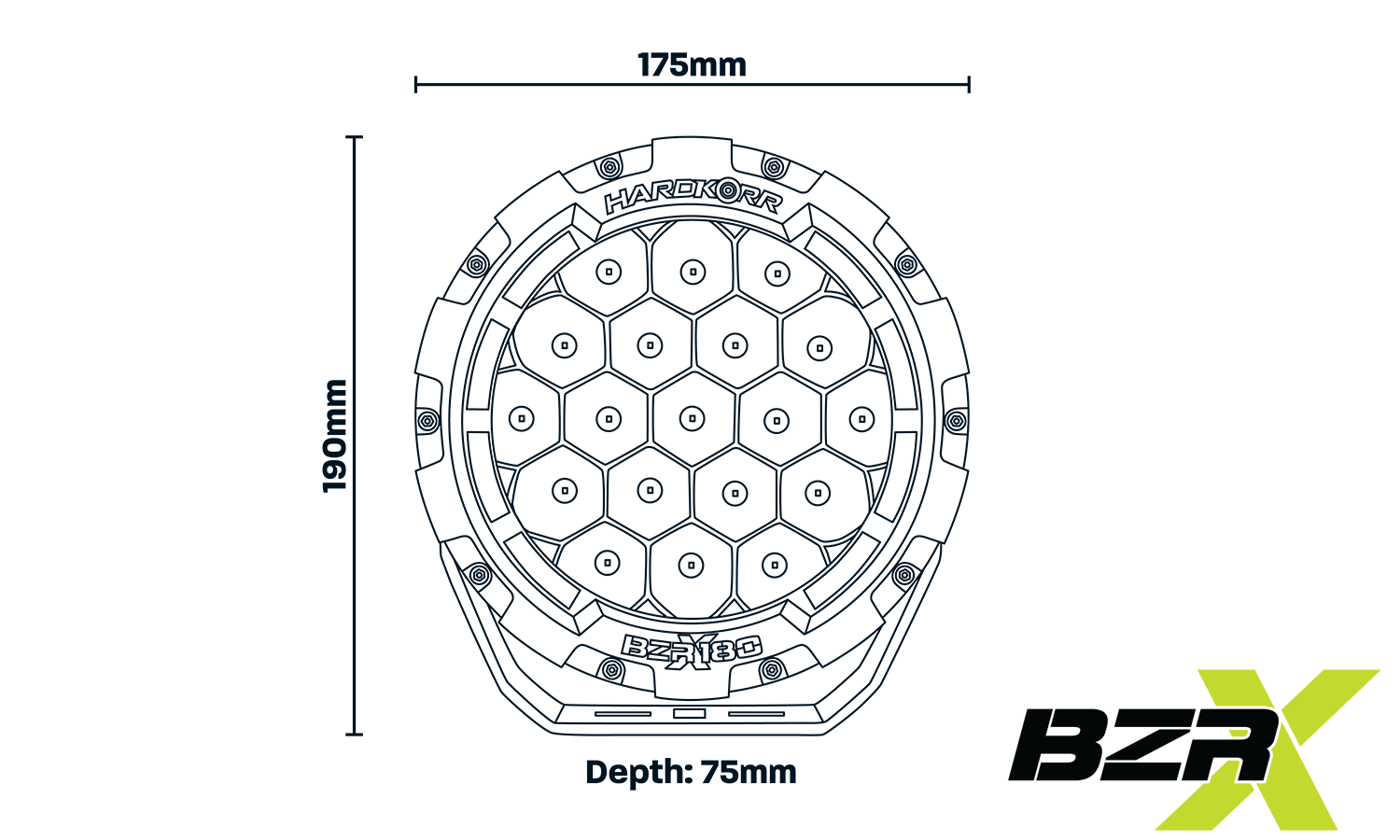

Dimensions | 175mm (w) x 190mm (h) x 75mm (d) incl. bracket |
LED Manufacturer | Genuine Lumileds® |
LED Number (each) | 19 x 5w |

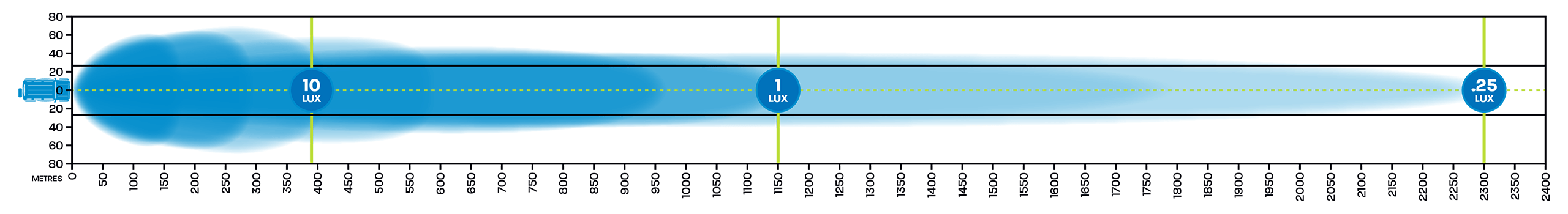

Lux (pair) | 1 lux @ 1,150m |
Output (pair) | 22,588 effective lumens |
Beam | Combination |
Ingress Protection | IP68 |
EMC rating | CISPR 15 Class 3 |
Impact rating | IK08 (5J) |
Vibration rating | IEC 60068-2-6 & ISO16750-1 (15G R.M.S. @ 24-2000Hz) |
Weight (each) | 1.9kg |
Operating Voltage | 10 – 30v DC |
Current (each) | 7.7A @ 12V / 3.75A @ 24V |
Colour Temp | 6000K |
LED Lifespan | 50,000+ hours |
Certifications | CE, RoHS, RCM |
Pack Contents

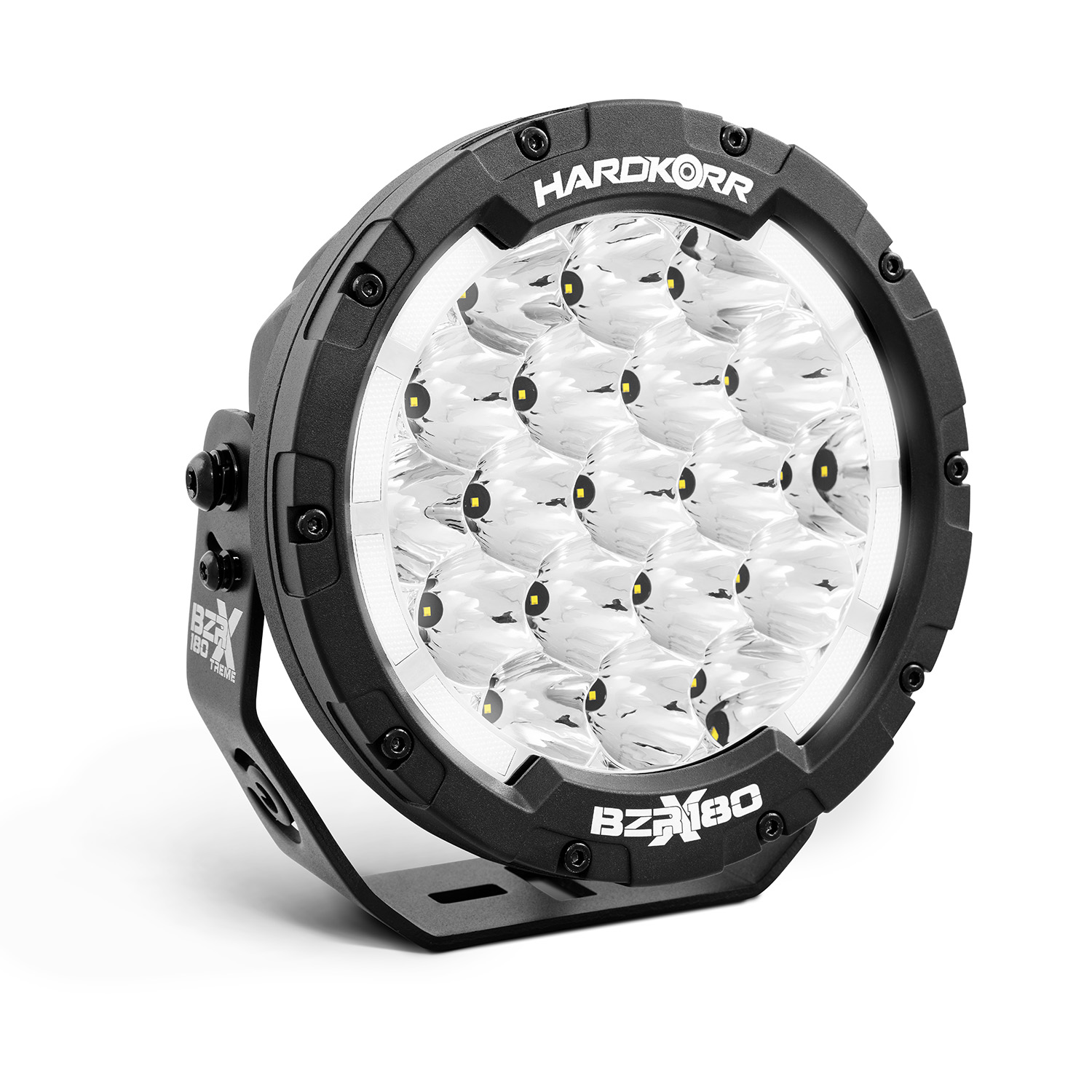

1x | 95w LED driving light |
---|---|
1x | 316 stainless steel mounting bracket |
1x | Set security bolts (T40 & T20) & anti-vibration rubber base |

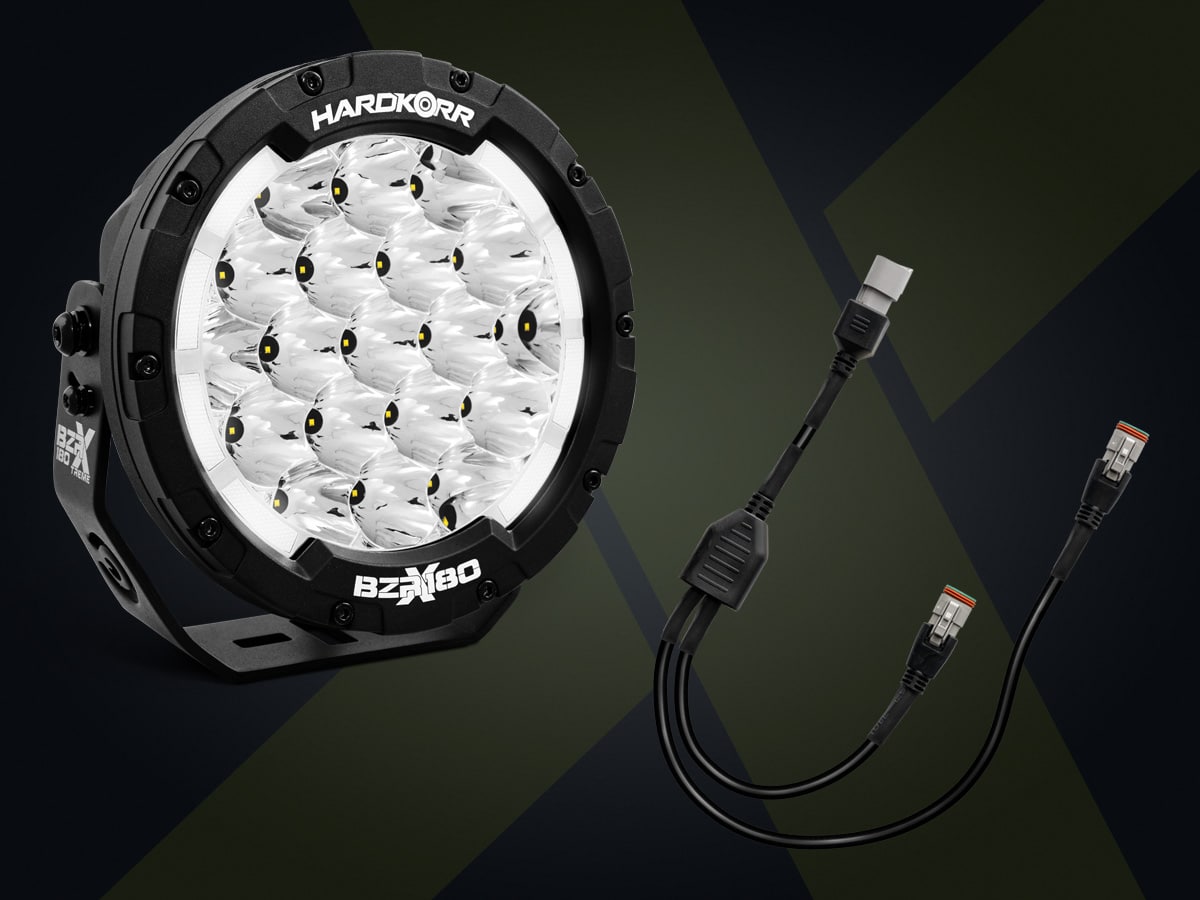

1x | 2-into-1 Deutsch adaptor cable |
