Specifications
Materials | 6063 aluminium housing Lexan® polycarbonate lens |
---|---|
LED Manufacturer | OSRAM® (spot LEDs) / CREE® (flood LEDs) |
LED Number | 68 x 3W OSRAM® 24 x 5W CREE® |
Beam type | GEN4 hybrid flood & spot |

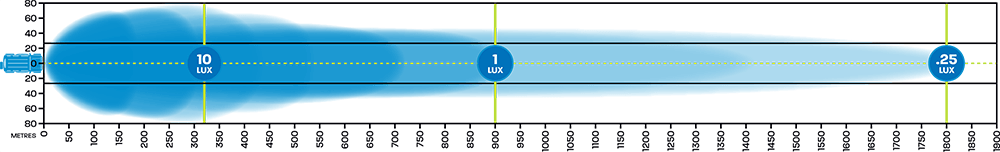

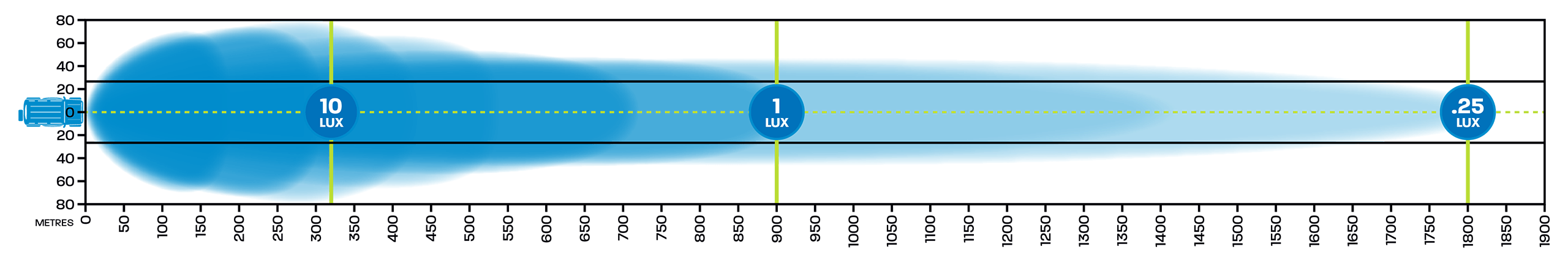

Beam throw | 1 lux @ 900m |
Output | 32,400 lumens |
Ingress Protection | IP68 |

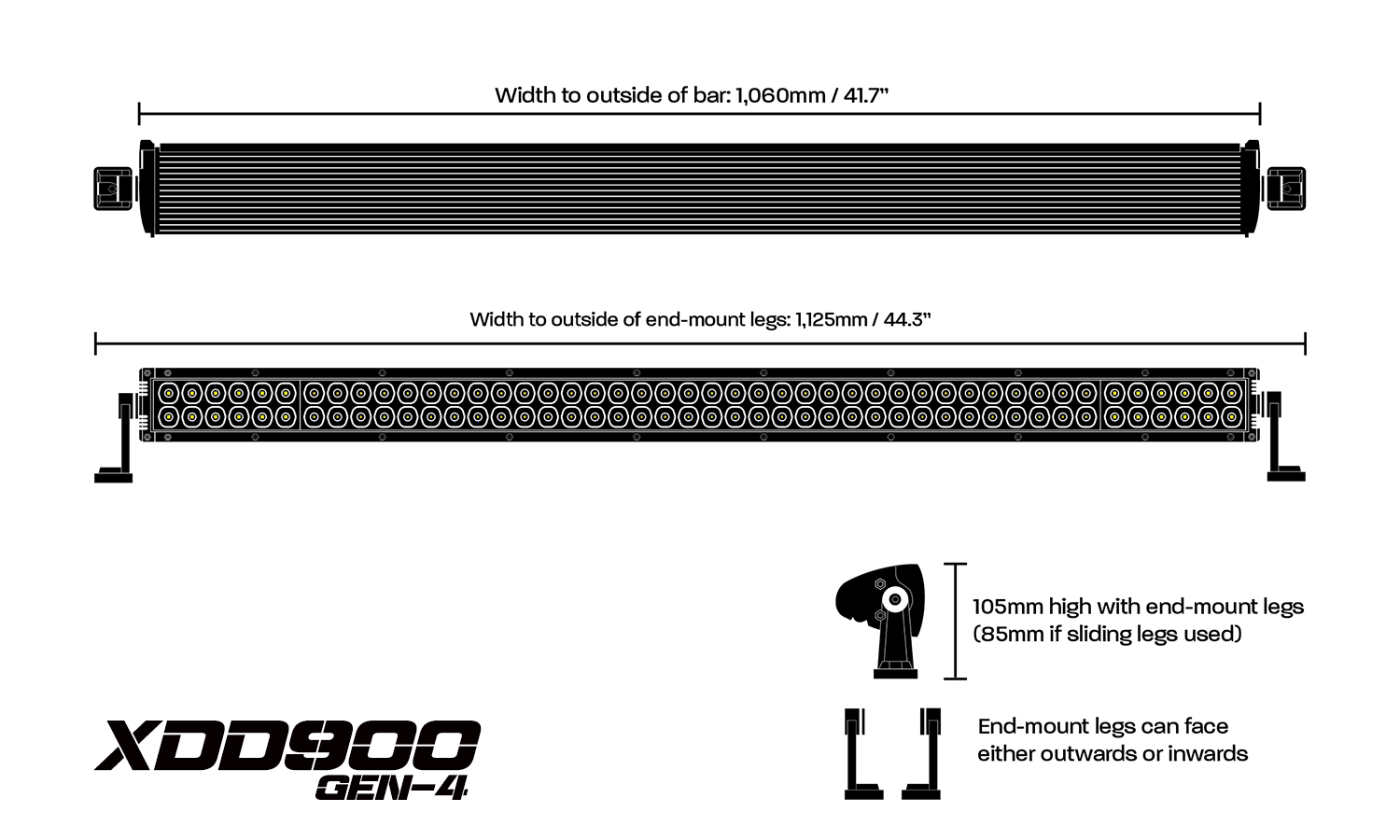

Dimensions | 1,060mm (w) x 75mm (d) x 85mm (h w/sliding legs) / 105mm (h w/end-mount legs) |
Weight | 6kg |
Operating Voltage | 10 – 30v DC |
Current | 16.4A @ 13.5V / 8.2A @ 24V |
Colour Temp | 6000K |
LED Lifespan | 50,000+ hours |
Certifications | CE, RoHS, C-Tick, CISPR15 |
Pack Contents
1x | 324w dual-row LED light bar |
---|---|
1x | heavy-duty wiring harness (off-road use only) |

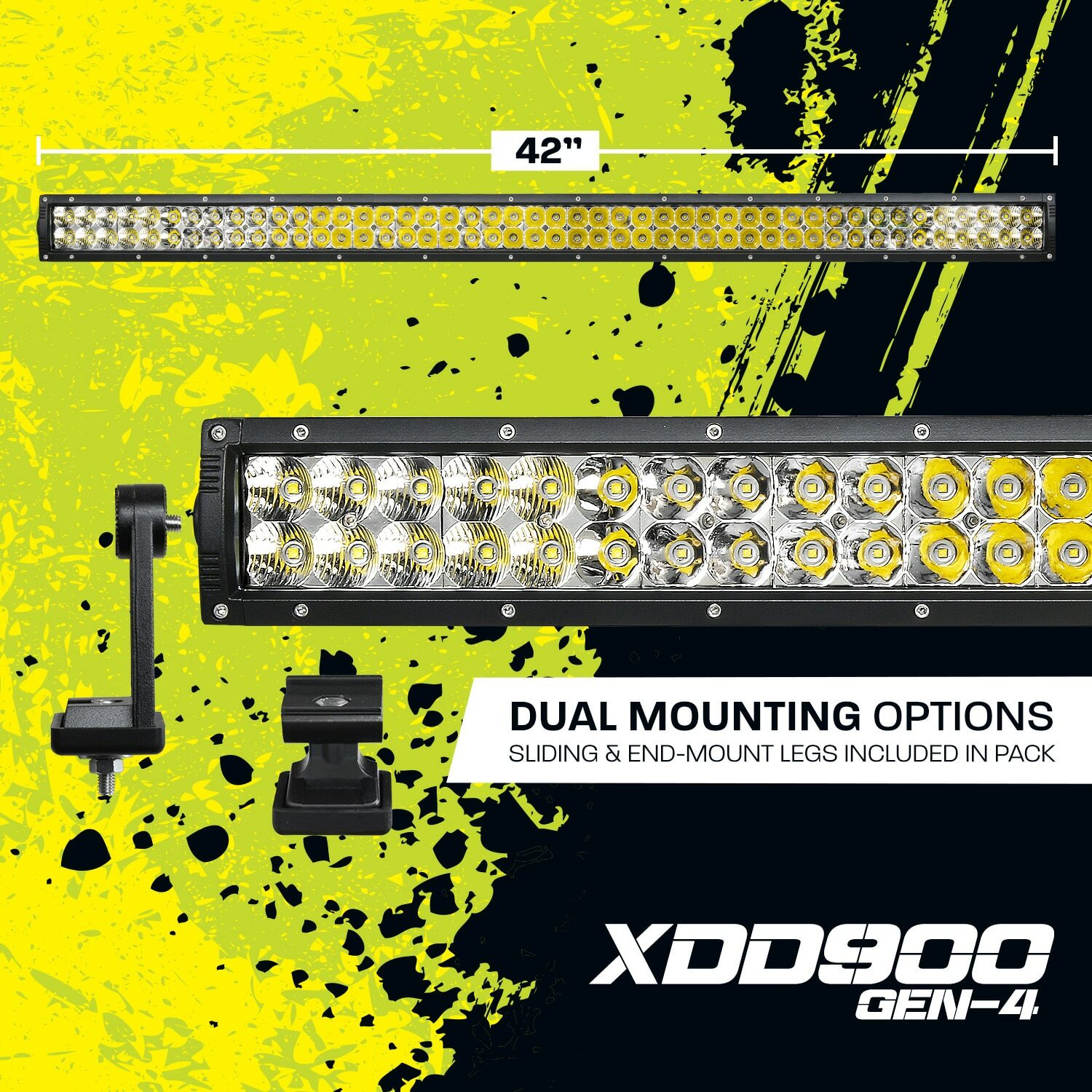

1x | set of end-mount legs |
1x | set of sliding legs |
1x | Deutsch plug tail |
