DISCONTINUED PRODUCT
This product has been discontinued and is no longer available to purchase. We have kept this page active for the benefit of those who have purchased this product in the past.
The legend continues.
The revolutionary GEN3 dual-chip hybrid LED technology we pioneered in our dual row LED light bars now comes standard in our all-new single row light bars.
Our XDS-GEN3 single row bars feature completely redesigned internals and circuitry for even better performance. 10w CREE® chips on each side provide a powerful flood beam, whilst next-generation 3w OSRAM® chips burn a hole in the night forward of the vehicle.
The result is a beautifully even, ultra-wide beam of light with no dark spots or hot spots in a compact, low-profile unit.
They’re also CISPR15 compliant, meaning they have been independently tested to ensure they do not interfere with radio frequencies.

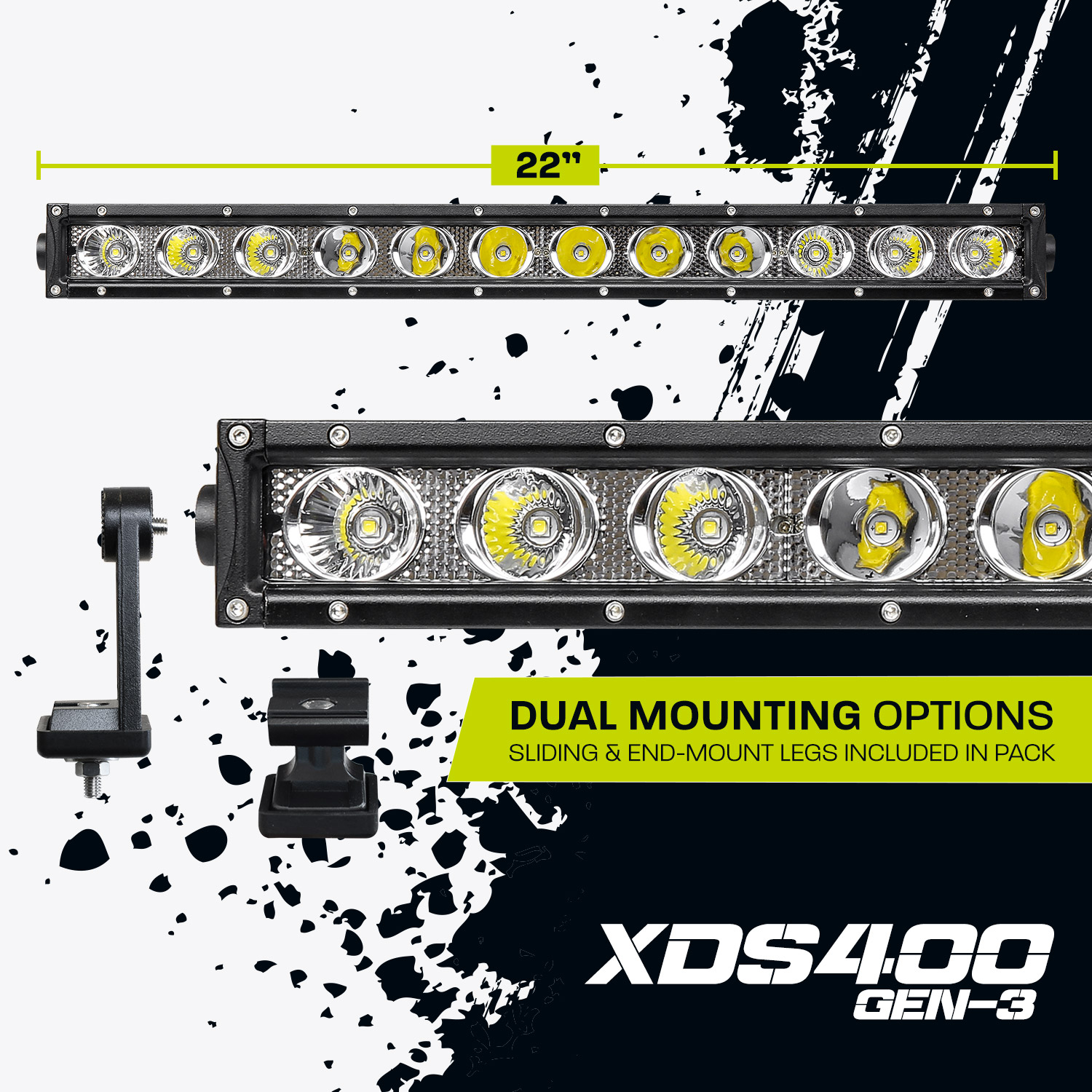

The 22 inch XDS400-G3 packs a powerful punch for its size. It can mount unobtrusively to any bull bar or under a roof rack.
Dual-chip technology.
The secret behind the unique beam pattern of Hardkorr GEN3 single row light bars is in combining the excellent flood capabilities of CREE® LEDs, the outstanding distance performance of OSRAM® LEDs and our own custom-engineered reflectors. The result is second to none!
Powerful, even combination beam.
Our dual-chip hybrid technology produces a light beam that is unparalleled in width and evenness. The output of these light bars fills your entire field of view, ensuring that you can spot hazards that are located in front of the vehicle and off to the sides of the road as well.

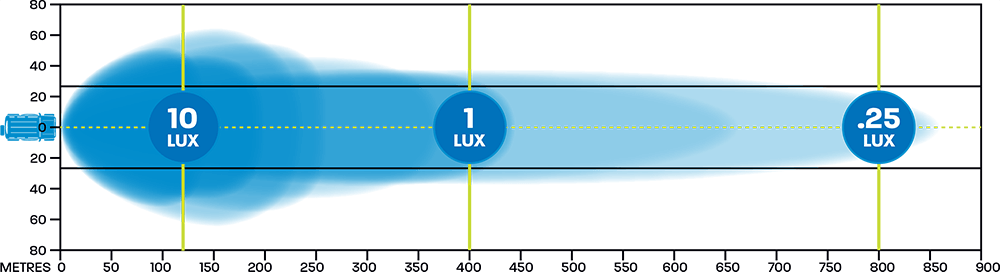

[Click the image for full-size diagram]

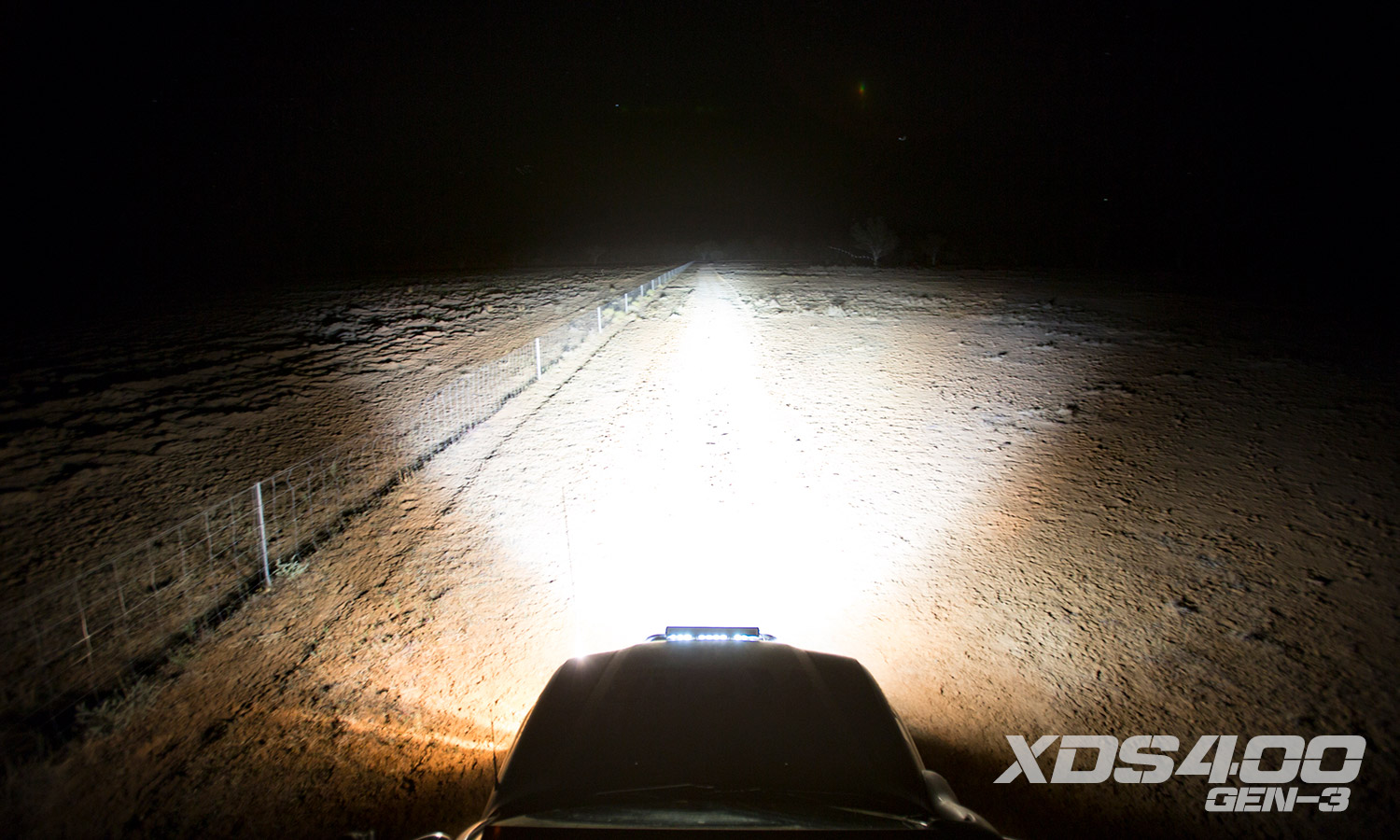

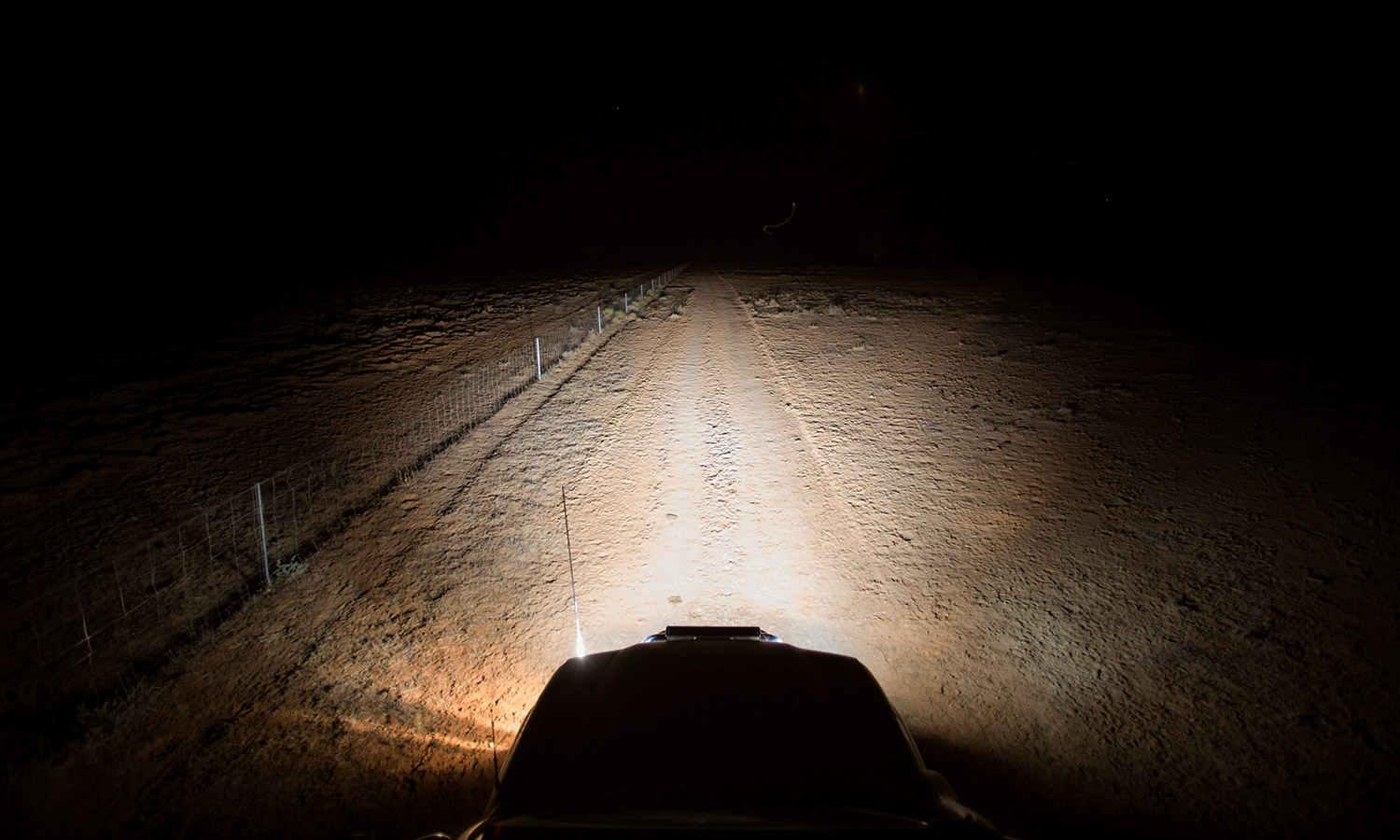

Drag the slider to see how your forward view changes when you use a Hardkorr XDS400-G3 LED light bar compared to normal high beam headlights.
Genuine parts, precision optics.
Hardkorr’s GEN3 series light bars are made using genuine top-grade OSRAM® and CREE® LED chips sourced from authorised agents, to ensure even light throw, correct colour rendering and long service life. These chips are matched with custom engineered reflectors that are manufactured to nanometre precision, and secured within high-quality aluminium housing which is designed to effectively dissipate heat and protect the sensitive components within.
This attention to detail ensures that every unit we manufacture gives consistent performance, and helps us fulfil our ambition to be the world’s most trusted manufacturer of LED lighting.
The Hardkorr guarantee
All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 5 year Australian warranty and a 30-day money back guarantee.
Specifications
| Materials | 6063 aluminium housing Lexan® polycarbonate lens |
|---|---|
| LED Manufacturer | OSRAM® (spot LEDs) / CREE® (flood LEDs) |
| LED Number | 6 x 3W OSRAM® 6 x 10W CREE® |
| Beam type | GEN3 hybrid flood & spot |
| Beam throw | 1 lux @ 401m |
| Output | 8,400 lumens |
| Ingress Protection | IP68 |
| Dimensions | 555mm (w) x 70mm (d) x 72mm (h w/sliding legs) / 80mm (h w/end-mount legs) |
| Weight | 2.1kg |
| Operating Voltage | 11 – 38v DC |
| Current | 4.4A @ 13.5V / 2.2A @ 24V |
| Colour Temp | 6000K |
| LED Lifespan | 50,000+ hours |
| Certifications | CE, RoHS, C-Tick, CISPR15 |
Pack Contents
| 1x | 84w single-row LED light bar |
|---|---|
| 1x | set of end-mount legs |
| 1x | set of sliding legs |
| 1x | Deutsch plug tail |

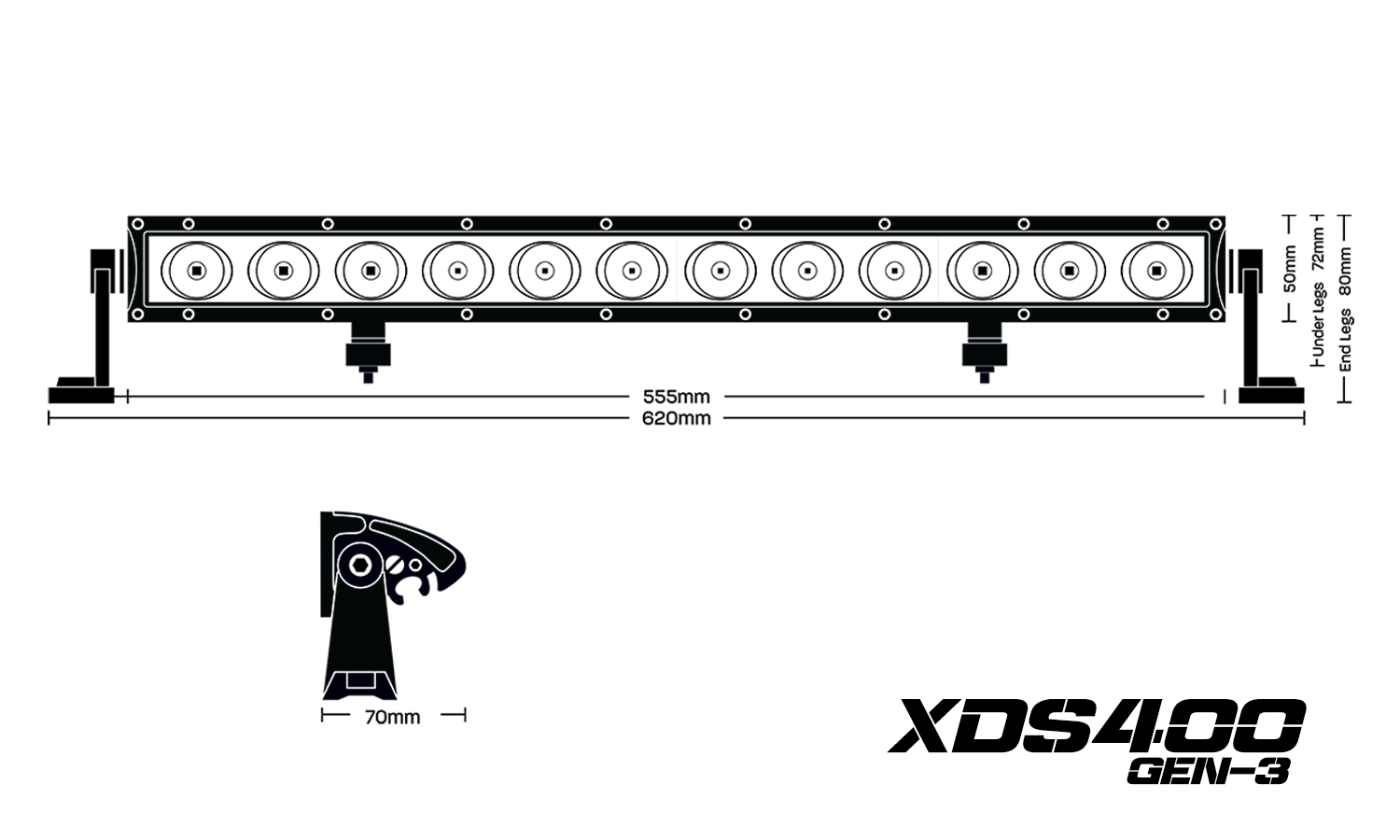

Dimensions
Max Karton –
Really great light bar. It throws a lot of light for a mid size light bar. It’s as good as Korr camping lights.
