DISCONTINUED PRODUCT
This product has been discontinued and is no longer available to purchase. We have kept this page active for the benefit of those who have purchased this product in the past.
Specifications
Materials | Poly/cotton canvas outer A-grade monocrystalline silicon solar cells |
---|---|
Wattage | 200W |
Working max. voltage | 18.80V |
Working max. current | 10.68A |
Open circuit | 22.80V |
Short circuit | 11.47A |
Dimensions (folded) | 350mm x 375mm x 70mm |
Dimensions (unfolded) | 1545mm x 1010mm |
Weight | 7.0kg (excl. controller & cables) |
Operating temperature | -40°C to 85°C |
Certifications | CE, RoHS, RCM (C-Tick) |

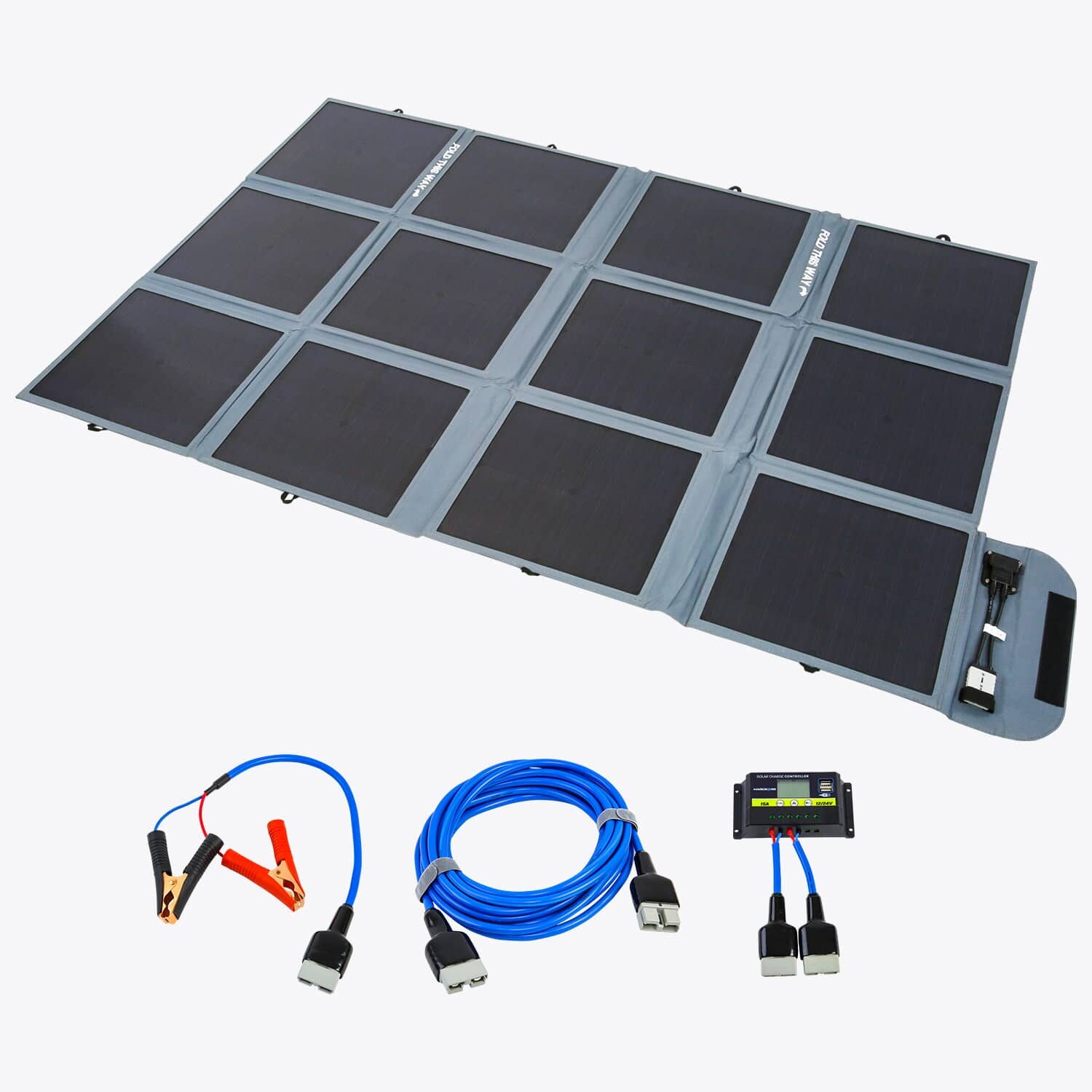

Pack Contents
1x | 200w portable solar blanket |
---|---|
1x | 20A PWM digital controller |
1x | 6m lead with Anderson style plugs |
1x | 0.5m Anderson-style plug to battery clamp cable |
1x | Protective carry bag |
K Dykstra –
Love the solar blanket, blushed it twice. This morning I ran the small 5cup coffee maker off my set up without sun. Now my control won’t light up. Not sure what is wrong
Beej –
The blanket is great but the controller needs better connections than the screw type which come loose. Also the Anderson plug is not Uv stabilised as mine broke to pieces after 10 months of normal use..
BILL AND DAVID. –
VERY HAPPY WITH THE QULALITY AND PERFORMANCE OF THE BLANKET. IT IS ALSO GREAT THAT IT FOLDS UP SO SMALL, MAKES IT EASY TO STORE
BILL AND DAVID. (verified owner) –
VERY HAPPY WITH THE QULALITY AND PERFORMANCE OF THE BLANKET. IT IS ALSO GREAT THAT IT FOLDS UP SO SMALL, MAKES IT EASY TO STORE
Charlie –
Happy with the quality of the blanket, however I didn’t receive any instructions for the controller? Are you able to provide some info in regards to selecting battery type etc.
Thanks
Richard Hateley (verified owner) –
Had it hooked to my battery(100ah) under bonnet thru projector dc dc, then had the another 100ah batt in the back ( in hard korr batt box) of the wagon, i didnt have an amp meter but it was putting back 14.8v easily in no time at all, we ran a 40lt waeco as a freezer and a 60lt engal as frodge for 4 days without a prob, im very happy with my purchase
Paul Gordon (verified owner) –
Folds up and fits perfectly in the drawers in the back of our 4WD. Perfect size to lie on the windscreen/bonnet. We bought it to for our fridge and it performed really well in bright sunshine and maintained battery level while overcast. Overall we are really happy with the purchase.
Seamus Jones –
Recently bought as needed solar to run my fridge for a last minute trip and it performed flawlessly even after it was partly submerged in te rear footwell while me car was stuck in a bog hole for 3 hrs
ryanjohnson1985 (verified owner) –
Quality of the Solar Panel seems very good and in recent use was pulling in just under 10A in full sun using my built in dc/dc charger’s solar input. The quality of the 6m cable that came with the blanket was quite poor, the Anderson connector was not crimped correctly and the cable didn’t work. I contacted support, only to be offered a replacement terminal that I need to fit myself. I just ended up going out and purchasing a separate Anderson extension lead to use.
